ePSproc with polarization state control
15/03/24
In the basic demo docs, MF-PADs are illustrated for the default case: linear polarization and \((x,y,z)\) polarization geometry relative to the \(z\)-axis, as defined by the molecular symmetry axis. In this notebook, further examples of polarization state creation and control are given.
For further details see also:
Frame definition docs (includes more info on frame definitions and polarization states, plus frame rotations).
Epol class demo, more details of the
EfieldPolclass for generating E-fields with arb polarization states, as used herein.
Molecular frame example (\(N_2\))
Quick demo as per the main class intro docs.
Import matrix elements
[1]:
# Import
import epsproc as ep
from pathlib import Path
# Set data path
# Note this is set here from ep.__path__, but may not be correct in all cases - depends on where the Github repo is.
epDemoDataPath = Path(ep.__path__[0]).parent/'data'
dataPath = epDemoDataPath/'photoionization'/'n2_multiorb'
OMP: Info #276: omp_set_nested routine deprecated, please use omp_set_max_active_levels instead.
* sparse not found, sparse matrix forms not available.
* natsort not found, some sorting functions not available.
* Setting plotter defaults with epsproc.basicPlotters.setPlotters(). Run directly to modify, or change options in local env.
* Set Holoviews with bokeh.
* pyevtk not found, VTK export not available.
[2]:
# Class dev code
from epsproc.classes.multiJob import ePSmultiJob
from epsproc.classes.base import ePSbase
# Instantiate class object.
# Minimally this needs just the dataPath, if verbose = 1 is set then some useful output will also be printed.
data = ePSbase(dataPath, verbose = 1)
# ScanFiles() - this will look for data files on the path provided, and read from them.
data.scanFiles()
*** Job orb6 details
Key: orb6
Dir /home/jovyan/github/ePSproc/data/photoionization/n2_multiorb, 1 file(s).
{ 'batch': 'ePS n2, batch n2_1pu_0.1-50.1eV, orbital A2',
'event': ' N2 A-state (1piu-1)',
'orbE': -17.09691397835426,
'orbLabel': '1piu-1'}
*** Job orb5 details
Key: orb5
Dir /home/jovyan/github/ePSproc/data/photoionization/n2_multiorb, 1 file(s).
{ 'batch': 'ePS n2, batch n2_3sg_0.1-50.1eV, orbital A2',
'event': ' N2 X-state (3sg-1)',
'orbE': -17.34181645456815,
'orbLabel': '3sg-1'}
[3]:
# Plot molecule

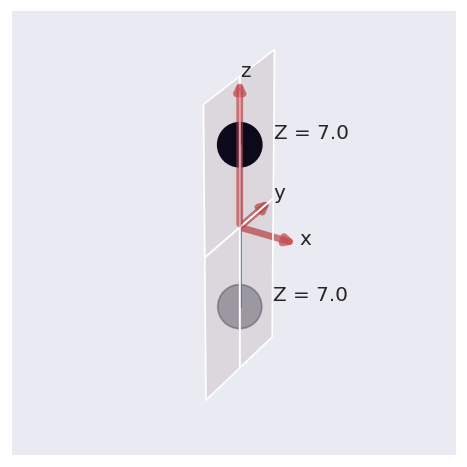

data.molSummary()
*** Molecular structure
*** Molecular orbital list (from ePS output file)
EH = Energy (Hartrees), E = Energy (eV), NOrbGrp, OrbGrp, GrpDegen = degeneracies and corresponding orbital numbering by group in ePS, NormInt = single centre expansion convergence (should be ~1.0).
| props | Sym | EH | Occ | E | NOrbGrp | OrbGrp | GrpDegen | NormInt |
|---|---|---|---|---|---|---|---|---|
| orb | ||||||||
| 1 | SG | -15.6719 | 2.0 | -426.454124 | 1.0 | 1.0 | 1.0 | 0.999532 |
| 2 | SU | -15.6676 | 2.0 | -426.337115 | 1.0 | 2.0 | 1.0 | 0.999458 |
| 3 | SG | -1.4948 | 2.0 | -40.675580 | 1.0 | 3.0 | 1.0 | 0.999979 |
| 4 | SU | -0.7687 | 2.0 | -20.917393 | 1.0 | 4.0 | 1.0 | 0.999979 |
| 5 | SG | -0.6373 | 2.0 | -17.341816 | 1.0 | 5.0 | 1.0 | 1.000000 |
| 6 | PU | -0.6283 | 2.0 | -17.096914 | 1.0 | 6.0 | 2.0 | 1.000000 |
| 7 | PU | -0.6283 | 2.0 | -17.096914 | 2.0 | 6.0 | 2.0 | 1.000000 |
Set polarization state(s) and polarization geometries
For simplicity, use the EfieldPol class (see the Epol class demo for more info). This provides a quick method to set fields in the \(E_{x,y}\), and \(E_{l,r}\) basis, and additionally wraps frame rotation functions.
[4]:
from epsproc.efield.epol import EfieldPol
import numpy as np
# Create some fields
# Linear pol defined as (Ex,Ey)
Exy = EfieldPol(Exy=[1,0])
# Define circ pol fields (max and min ellipticity)
ERCP = EfieldPol(ell=[1,0,np.pi/4])
ELCP = EfieldPol(ell=[1,0,-np.pi/4])
# Define arb ellipticity and rotations, format = [amplitude,azimuth (0,pi), ellipticity (-pi/4,pi/4)]
ellipticity = 0.5*np.pi/4
Eell_mixed = EfieldPol(ell=[1,0,ellipticity])
Eell_rotated = EfieldPol(ell=[1,np.pi/3,ellipticity])
# Mulitple ellipticities and rotations
states = 10
# angles = np.linspace(0, np.pi, states) # For range of angles
angles = np.zeros(states) # no rotation
ellipticities = np.linspace(0,np.pi/4, states)
ell = np.c_[np.ones(states),angles,ellipticities]
labels = (ellipticities/(np.pi/4) * 100).round(2) # Set labels at %age ellipticity
Eell_multi = EfieldPol(ell=ell, labels = labels)
# Set all pol states above in a dictionary
polStateList = [k for k in locals().keys() if k.startswith('E') and k != 'EfieldPol']
# Set dict of EfieldPol objects
polStateDict = {}
for k in polStateList:
polStateDict[k] = locals()[k]
Set field from Exy.
[[1. 0.]]
Set field from ell.
[[1. 0. 0.78539816]]
Set field from ell.
[[ 1. 0. -0.78539816]]
Set field from ell.
[[1. 0. 0.39269908]]
Set field from ell.
[[1. 1.04719755 0.39269908]]
Set field from ell.
[[1. 0. 0. ]
[1. 0. 0.08726646]
[1. 0. 0.17453293]
[1. 0. 0.26179939]
[1. 0. 0.34906585]
[1. 0. 0.43633231]
[1. 0. 0.52359878]
[1. 0. 0.61086524]
[1. 0. 0.6981317 ]
[1. 0. 0.78539816]]
[5]:
Eell_multi.labels
[5]:
array([ 0. , 11.11, 22.22, 33.33, 44.44, 55.56, 66.67, 77.78,
88.89, 100. ])
[6]:
# Each e-field object has some attached methods, for this demo access them via a dictionary
# item.plot() is available if the py_pol library is installed.
# item.plotSph() is always available
# Plot all pol states

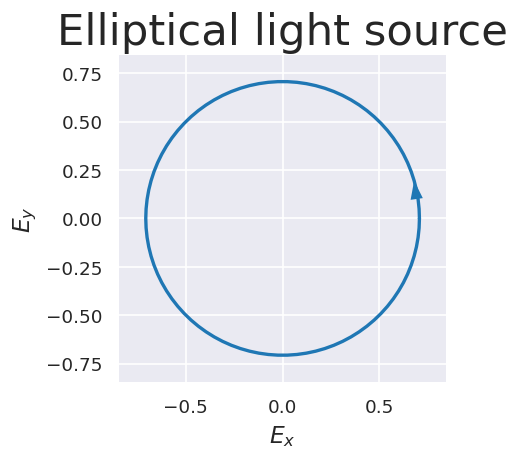

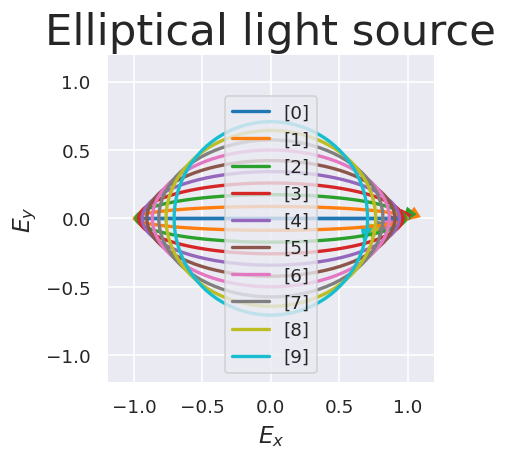

[item.plot(figsize=(4,4)) for k,item in polStateDict.items()]
[6]:
[None, None, None, None, None, None]
Compute MF results
The main MFBLM class routine will accept either an EfieldPol object, or the dictionary self.epDict, which contains the parameters required by the MFBLM() calculation. In the former case, default configuration options will be applied if missing, or can be set manually for additional control. If multiple polarization states are present in the EfieldPol object, calculations will be run for all pol states (see demo below).
Known issue: for some cases low cross-sections may result in unphysical \(\beta_{L,M}\) results. These currently require manual checking of the corss-sections, but will be automatically flagged/filtered in future. See issue #76 for updates.
[7]:
# Set input field(s) as class instance
Einput = Eell_rotated
# Two options:
# (1) Use Epol class object as Einput, this will run for default config options if not set
data.MFBLM(EfieldPol = Einput)
# # (2) Manually configure then pass either object or self.epDict to be passed.
# # Set params for MFBLM calculation
# Einput.setep()
# Einput.setOrientation() # To ensure frame settings for Epol, run self.setOrientation.
# # Otherwise MFBLM computation will use defaults.
# Einput.calcEPR(labels = ellipticities.round(2)) # For multi-pol case also need calcEPR, but can skip for single pol case.
# # Set labels for additional control
# data.MFBLM(EfieldPol = Einput) # Pass with updated object
# # Can also run as per older style with dict passing
# data.MFBLM(**Einput.epDict) # Pass via self.epDict
Calculating MF-BLMs for job key: orb6
Set parameters to `self.epDict` and `self.epXR`.
Set pol state data to self.YLM and self.YLMrot, and orientations to self.RX.
Set orientations to self.epDict['RX'].
Calculating MF-BLMs for job key: orb5
[8]:
# Plot some MF-PADs with Plotly backend
# data.BLMplot(dataType='MFBLM', thres = 1e-2, backend='hv', Erange=[0,15], ylim=(-1.5, 2.5), width=800)
data.padPlot(keys = 'orb5', Erange = [8, 10, 4], dataType='MFBLM',
nCols = 5, backend='pl', returnFlag=True)
Using default sph betas.
Summing over dims: set()
Plotting from self.data[orb5][MFBLM], facetDims=['Eke', 'Labels'], pType=a with backend=pl.
*** WARNING: plot dataset has min value < 0, min = (-2.440693579175965-0.18527562237567477j). This may be unphysical and/or result in plotting issues.
Set plot to self.data['orb5']['plots']['MFBLM']['polar']
[9]:
# Plot BLM parameters
# Note this may be quite slow for large results sets
data.BLMplot(dataType='MFBLM', thres = 1e-2, backend='hv', width=700, ylim=(-1.5, 2.5), xlim=(0,15))
BLMplot set data and plots to self.plots['BLMplot']
[9]:
True
Compute MF results for a range of polarizations and compare
For direct comparison of states, a single MFPAD run can be performed with a pre-defined set of fields defined by the input field (or EPR tensor) terms. The method is essentially as for a single field, except that some additional plotting arguments may be required to handle the additional dimension in the results (defaults to name pol).
[10]:
# Set input field(s) as class instance
Einput = Eell_multi
# Two options:
# (1) Use Epol class object as Einput, this will run for default config options if not set
data.MFBLM(EfieldPol = Einput)
# # (2) Manually configure then pass either object or self.epDict to be passed.
# # Set params for MFBLM calculation
# Einput.setep()
# Einput.setOrientation() # To ensure frame settings for Epol, run self.setOrientation.
# # Otherwise MFBLM computation will use defaults.
# Einput.calcEPR(labels = ellipticities.round(2)) # For multi-pol case also need calcEPR, but can skip for single pol case.
# # Set labels for additional control
# data.MFBLM(EfieldPol = Einput) # Pass with updated object
# # Can also run as per older style with dict passing
# data.MFBLM(**Einput.epDict) # Pass via self.epDict
Calculating MF-BLMs for job key: orb6
Set parameters to `self.epDict` and `self.epXR`.
Set pol state data to self.YLM and self.YLMrot, and orientations to self.RX.
Set orientations to self.epDict['RX'].
Set geomCalc.EPR() results to `self.EPRX`.
Calculating MF-BLMs for job key: orb5
[20]:
# Plot some MF-PADs with Plotly backend, selected by pol geometry and shown by pol state/type
# data.BLMplot(dataType='MFBLM', thres = 1e-2, backend='hv', Erange=[0,15], ylim=(-1.5, 2.5), width=800)
data.padPlot(keys = 'orb5', Erange = [8, 10, 4], dataType='MFBLM',
facetDims=['Eke', 'pol'], selDims = {'Labels':'x'},
nCols = 5, backend='pl', returnFlag=True) #, width=1200, height=1200)
Using default sph betas.
Summing over dims: set()
Plotting from self.data[orb5][MFBLM], facetDims=['Eke', 'pol'], pType=a with backend=pl.
*** WARNING: plot dataset has min value < 0, min = (-3.341508000902801-0.26014544128014244j). This may be unphysical and/or result in plotting issues.
Set plot to self.data['orb5']['plots']['MFBLM']['polar']
[12]:
# Plot BLM parameters
# Note this may be quite slow for large results sets
data.BLMplot(dataType='MFBLM', thres = 1e-2, backend='hv', width=700, ylim=(-1.5, 2.5), xlim=(0,15))
BLMplot set data and plots to self.plots['BLMplot']
[12]:
True
[13]:
# Plot BLM parameters - VERSUS POL STATE
# Note this may be quite slow for large results sets
# To speed up pass subselection options to plotter, or replot (see next cell).
data.BLMplot(dataType='MFBLM', xDim='pol', Erange=[0,10], thres = 1e-2, backend='hv', width=700, ylim=(-1.5, 2.5)) #, xlim=(0,15))
BLMplot set data and plots to self.plots['BLMplot']
[13]:
True
[14]:
# Example with post-plotter subselection for faster plotting...
# Create HV object, but don't plot
data.BLMplot(dataType='MFBLM', xDim='pol', thres = 1e-2, backend='hv', width=700, ylim=(-1.5, 2.5),
renderPlot=False)
# Replot from Holoviews dataset with selectors
# Note this may need hv or hvPlotters to be loaded
from epsproc.plot import hvPlotters
xDim = 'pol'
data.plots['BLMplot']['hvDS'].select(Eke=[1.1,10.1,20.1]).select(Orb='orb5').to(hvPlotters.hv.Curve, kdims=xDim).overlay(['l', 'm'])
BLMplot set data and plots to self.plots['BLMplot']
[14]:
Compute LF and AF results
In progress March 2024.
Versions
[15]:
import scooby
scooby.Report(additional=['epsproc', 'holoviews', 'hvplot', 'xarray', 'matplotlib', 'bokeh', 'plotly'])
[15]:
